FIFO (hsid_fifo)

The main purpose of this FIFO is to serve as internal memory for storing the captured HSP. This HSP must be compared with m pixels from the spectral library. By storing it in the FIFO, repeated memory reads m times are avoided.

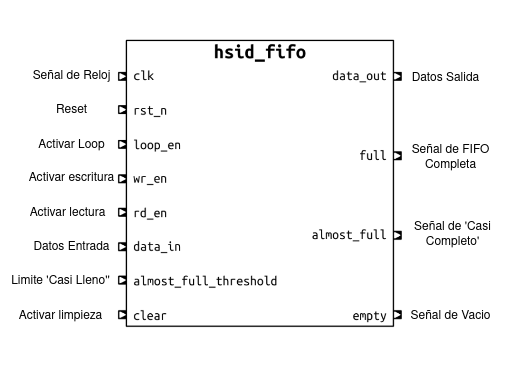

The figure above shows the input and output signals of the module. The output signals full and empty are asserted when the FIFO is either full or empty, respectively. The almost_full signal is asserted when the FIFO contains as many elements as specified by the almost_full_threshold signal. This functionality is relevant when the number of bands in the captured HSP does not reach the FIFO’s maximum capacity.

Operation	Priority	clear	loop_en	wr_en	rd_en
Clear	1	1	X	X	X
Loop	2	0	1	X	X
Write	3	0	0	1	0
Read	3	0	0	0	1
Write / Read	3	0	0	1	1

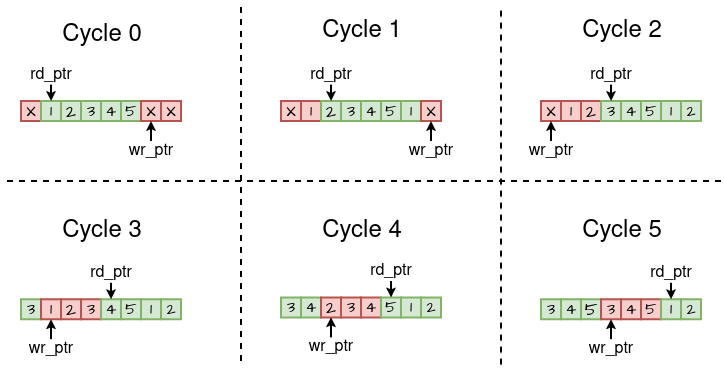

The use cases are summarized in the table above. The operations clear, write, read, and write/read are typical of any FIFO. The loop operation means that the data being read is immediately written back into the FIFO as its last element. In this case, the operation completes in a single cycle, during which the input port signal data_in is ignored. The figure below shows the internal state of the fifo memory, and the wr_ptr
