Divisor (hsid_divider)

The divisor included in this project is a blocking module without pipelining. This operation is performed at the end of the hsid_sq_df_acc module, after the final accumulator, within the hsid_mse module. To ensure correct operation, you must make sure that HSP is large enough to avoid issues with the overall dataflow.

A non-restoring division algorithm for unsigned integers is used to perform the division, operating over K iterations to produce a K-bit quotient and remainder from a 2*K-bit dividend.

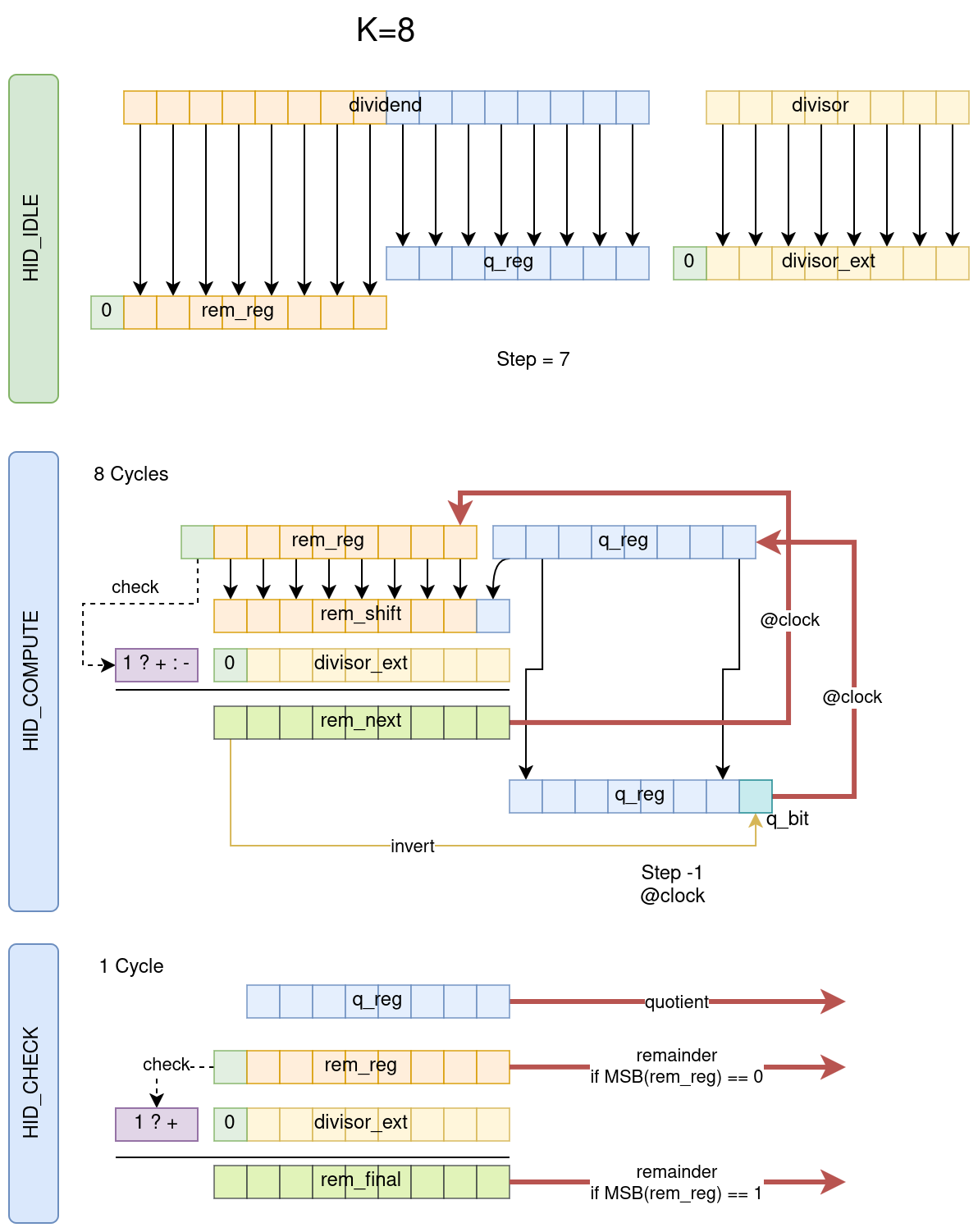

The divider accepts a 2*K-bit dividend and a K-bit divisor. On start, it initializes an internal remainder register (rem_reg) with the most significant half of the dividend, and a shift register (q_reg) with the least significant half of the dividend. During each cycle, it shifts the remainder left, brings in the next dividend bit, and then conditionally adds or subtracts an extended divisor (divisor_ext) to compute the next remainder and quotient bit. After K compute cycles, the quotient and final remainder are presented on the outputs. The figure below shows the combinational logic for the previously described 8-bit divider. This logic is somewhat complex and must be executed within a single cycle.

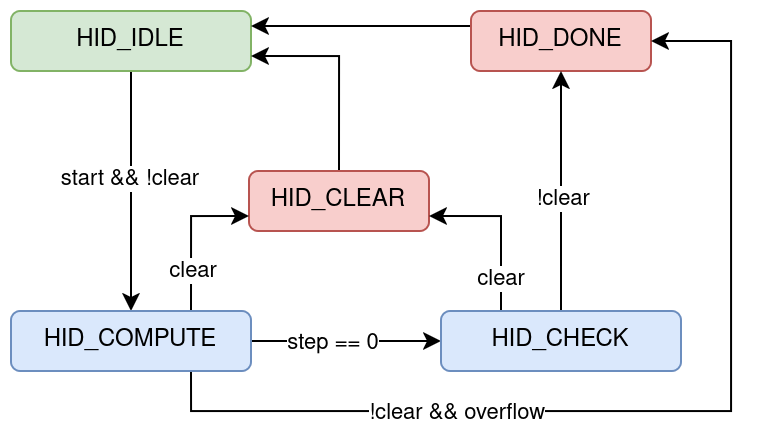

In the figure below, you can find its FSM with all the states and its transitions. There is a possibility to cancel out the division and stop all operations.

This implementation constains an overflow verification which asserts the input dividend is too big for the input divisor. There's also be an input overflow to detect is the input dividend is already overflown. This verification is asserted before the FSM begins.
